商品の詳細:
|
| 電源: | なし（電気は必要ありません） | 寿命をフィルタリングします: | 8-12months |
|---|---|---|---|
| 寿命: | 10年 | 騒音レベル: | ≤50dB |
| 密度: | 1.05～1.15g/cm3 | 圧力範囲: | 0.5-0.75Mpa |

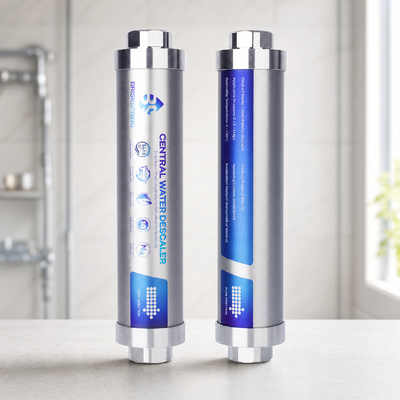

The BriskSpring J-600-BS is an inline physical water descaler for municipal water systems. It uses Pure Physical Ion Polarization technology to support scale-management applications in whole-house water supply lines and non-circulating hot-water systems.
This product is a non-salt, non-ion-exchange physical scale-control solution. It is not a resin water softener and should not be described as removing calcium or magnesium, reducing hardness or producing softened water.
| Item | Specification |
|---|---|
| Model | J-600-BS |
| Product Type | Whole House Physical Water Descaler |
| Connector Size | 3/4 in |
| Connector Material | H59-1 Copper |
| Applicable Water | Municipal Water |
| Working Pressure | 0.15–1 MPa |
| Working Pressure | 21.76–145.03 PSI |
| Applicable Water Temperature | 0–99°C |
| Applicable Water Temperature | 32–210.2°F |
| Flow Rate | ≤4 T/H |
| Flow Rate | ≤17.6 GPM |
| Product Dimensions | 250 * 60 * 60 mm |
| Product Dimensions | 9.8 * 2.4 * 2.4 in |
| Item Weight | 0.925 kg |
| Package Weight | 1.273 kg |
| Package Dimensions | 300 * 100 * 100 mm |
| Package Dimensions | 11.8 * 3.9 * 3.9 in |
| Working Principle | Pure Physical Ion Polarization |
J-600-BS uses Pure Physical Ion Polarization technology for physical scale-control applications. The product is designed as an inline water-treatment component for suitable municipal-water systems.
Performance is influenced by the confirmed model, water quality, flow condition, installation position and operating environment. Please evaluate the application conditions before selection.
Non-salt physical scale-control solution
Non-ion-exchange product concept
Compact inline design for 3/4 in plumbing systems
Suitable for municipal-water projects within the stated pressure and temperature range
Supports whole-house water-supply and non-circulating hot-water installation layouts
H59-1 copper connector configuration
No resin regeneration process
Can be evaluated together with an upstream pre-filter
For a standard water supply system, install the J-600-BS after the intake valve, water meter, water pipe and upstream pre-filter. The pre-filter helps reduce sediment and suspended matter entering the downstream water-treatment line.
For a non-circulating hot water system, install the product after the upstream pre-filter and before the hot-water equipment, following the confirmed flow direction.
Before installation, confirm pipe size, water quality, flow demand, available space, operating pressure, temperature and local plumbing requirements.
J-600-BS can be evaluated for:
Residential whole-house municipal-water systems
Water-heater inlet water lines
Non-circulating hot-water plumbing systems
Water-treatment distribution projects
Relevant plumbing applications requiring a 3/4 in inline physical scale-control unit
BriskSpring supports water-treatment product projects for distributors, importers, plumbing contractors and OEM brands. We can assist with product configuration, labeling, packaging and project communication based on confirmed requirements.
For the confirmed model and destination market, applicable current documents can be checked with the factory before order confirmation.
Is J-600-BS a traditional salt water softener?
No. J-600-BS is a non-salt, non-ion-exchange physical water descaler. It does not use resin regeneration.
What water source is it designed for?
The product catalog lists municipal water as the applicable water source. Other source-water conditions should be evaluated before selection.
What is the connector size?
The catalog specification is 3/4 in.
Where should the product be installed?
The catalog shows installation after an upstream pre-filter in a standard water-supply system or a non-circulating hot-water system. Confirm the final installation plan with the actual pipe layout.
Can I customize branding or packaging?
OEM branding, labels and packaging can be evaluated based on quantity and project requirements.
